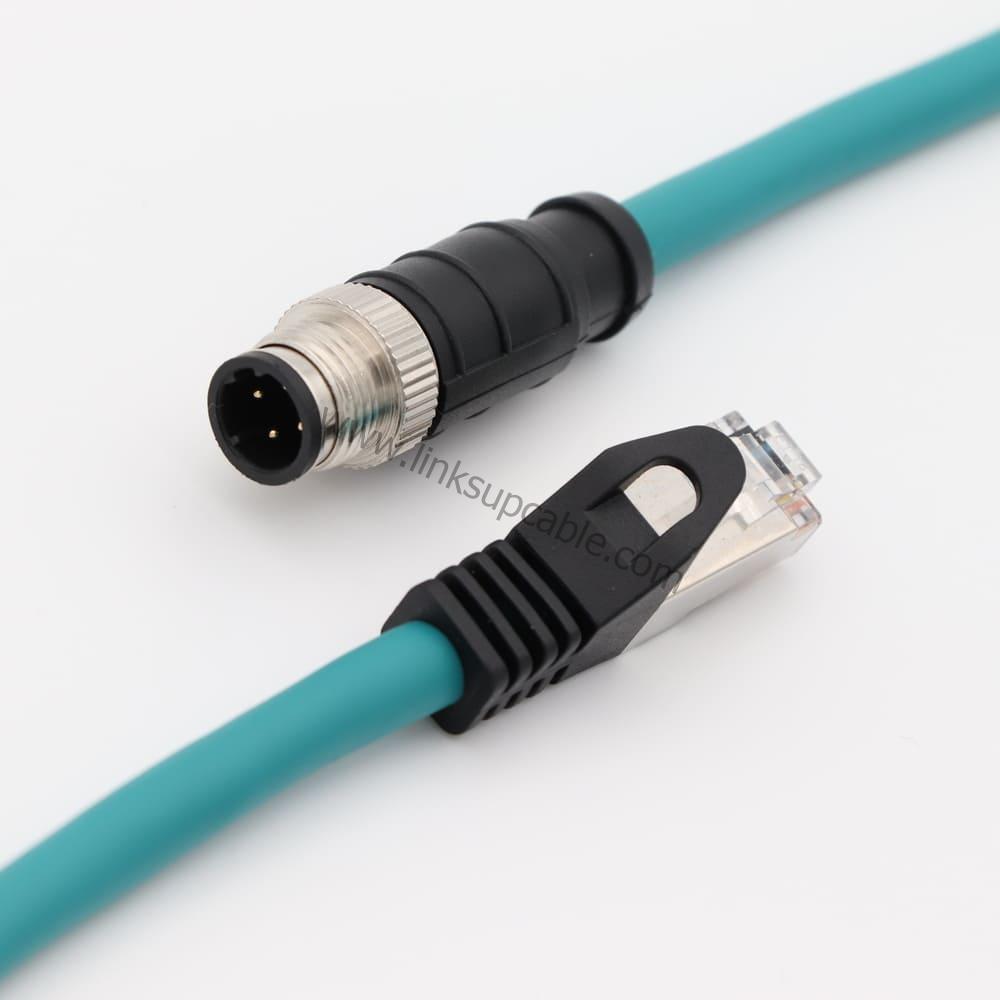

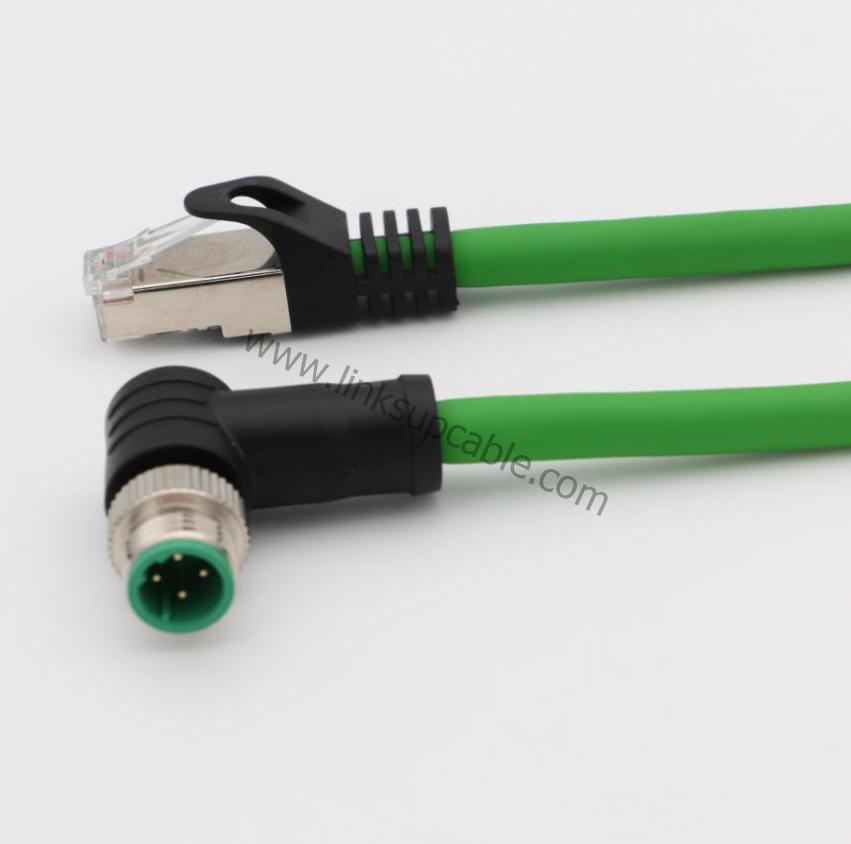

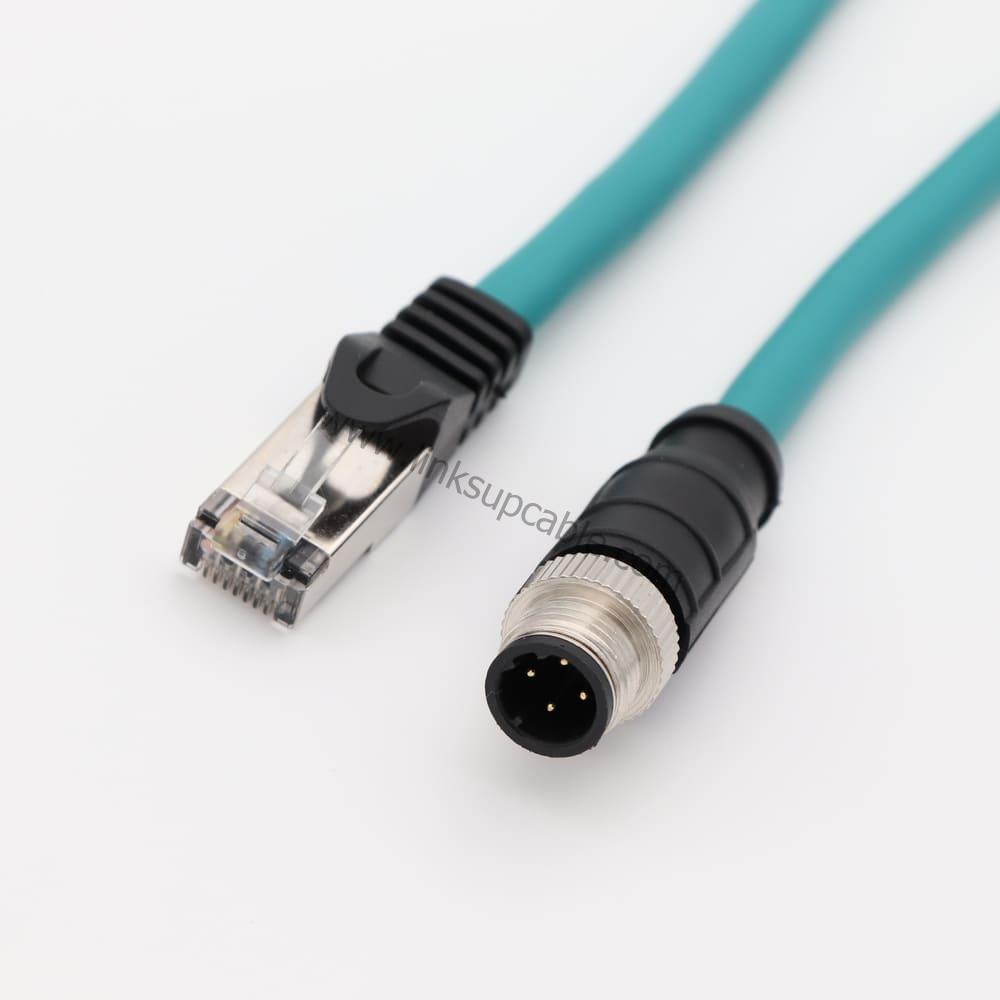

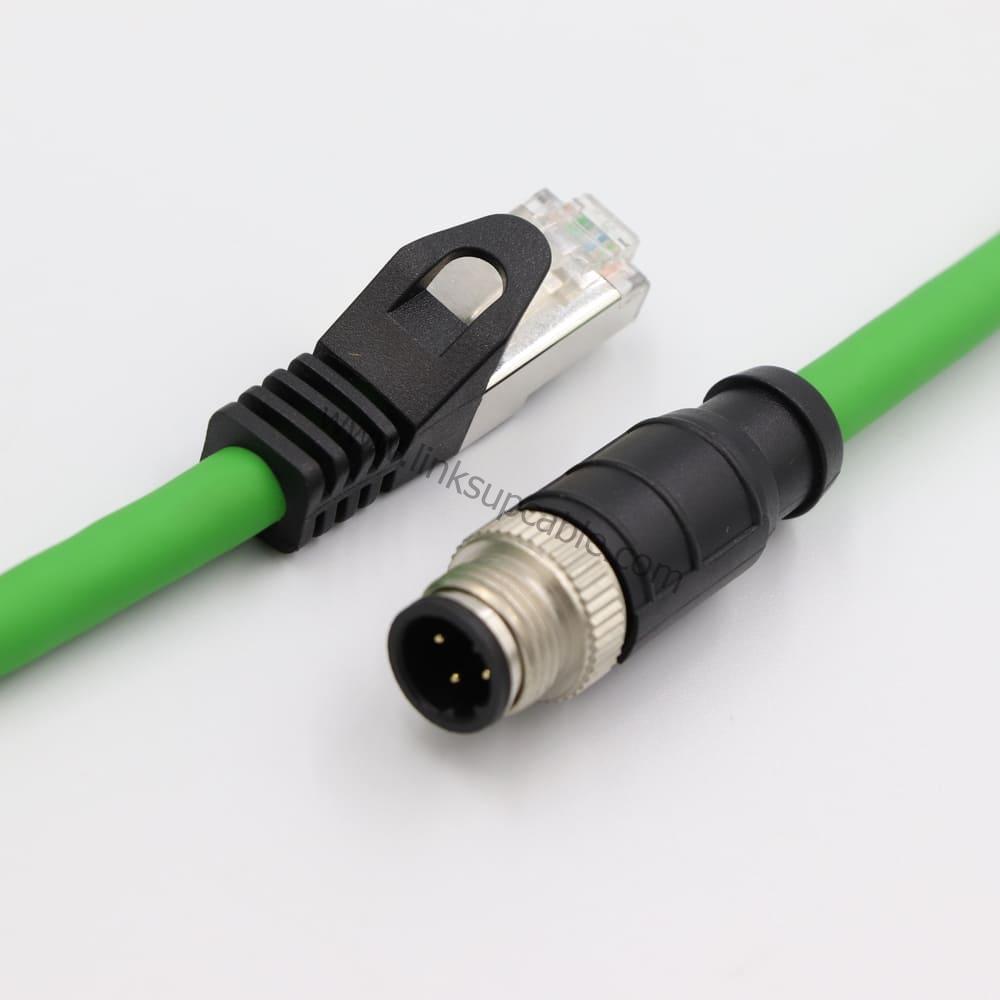

Industrial RJ45 to M12 D-Code 4-Pin Ethernet Patch Cable for Harsh Environments
Product Overview: Designed to bridge standard office networking equipment with rugged industrial environments, the RJ45 to M12 D-Type 4-Pin industrial patch cable provides a secure, high-speed data connection where standard cables fail. Built to withstand moisture, dust, extreme temperatures, and constant mechanical vibration, this cable is an ideal solution for industrial Ethernet protocols (such as PROFINET, EtherNet/IP, and Modbus TCP).
Key Features & Benefits:
- Rugged Industrial Construction: M12 D-coded 4-pin molded connectors with robust locking mechanisms protect against accidental disconnection caused by shock and heavy vibrations.
- Superior Signal Integrity: High-quality twisted-pair wiring with optional foil/braid shielding minimizes EMI/RFI interference, ensuring stable, high-bandwidth data transmission up to 100 Mbps / 1 Gbps (Cat5e standard).
- IP67 Waterproof & Dustproof: The M12 end offers superior ingress protection, making it resistant to washdowns, oil, moisture, and harsh factory floors.
- Flexible & Durable Jacket: Premium PVC or PUR outer jacket resists abrasion, chemical exposure, and UV radiation for extended service life in dynamic flexing applications.
Technical Specifications:
- Connector A: Standard RJ45 Male (8P8C)
- Connector B: M12 D-Code Male/Female, 4-Pin (Screw Locking)
- Cable Type: Cat5e Industrial Ethernet Cable (UTP / STP options available)
- Data Rate: Up to 100Mbps / 1 Gbps
- Protection Rating: IP67 (M12 side)
- Operating Temperature: -40°C to +85°C
- Customization: Custom lengths, pinout configurations, and angled connector options available upon request.
Applications:
- Industrial Automation & Factory Machinery
- Robotics and CNC Machine Tools
- Industrial Ethernet Switches and PLCs
- Machine Vision and Camera Systems
- Transportation and Railway Communication Systems
