Next-Generation 10Gbps Industrial Connectivity: RJ45 to M12 X-Coded 8-Pin

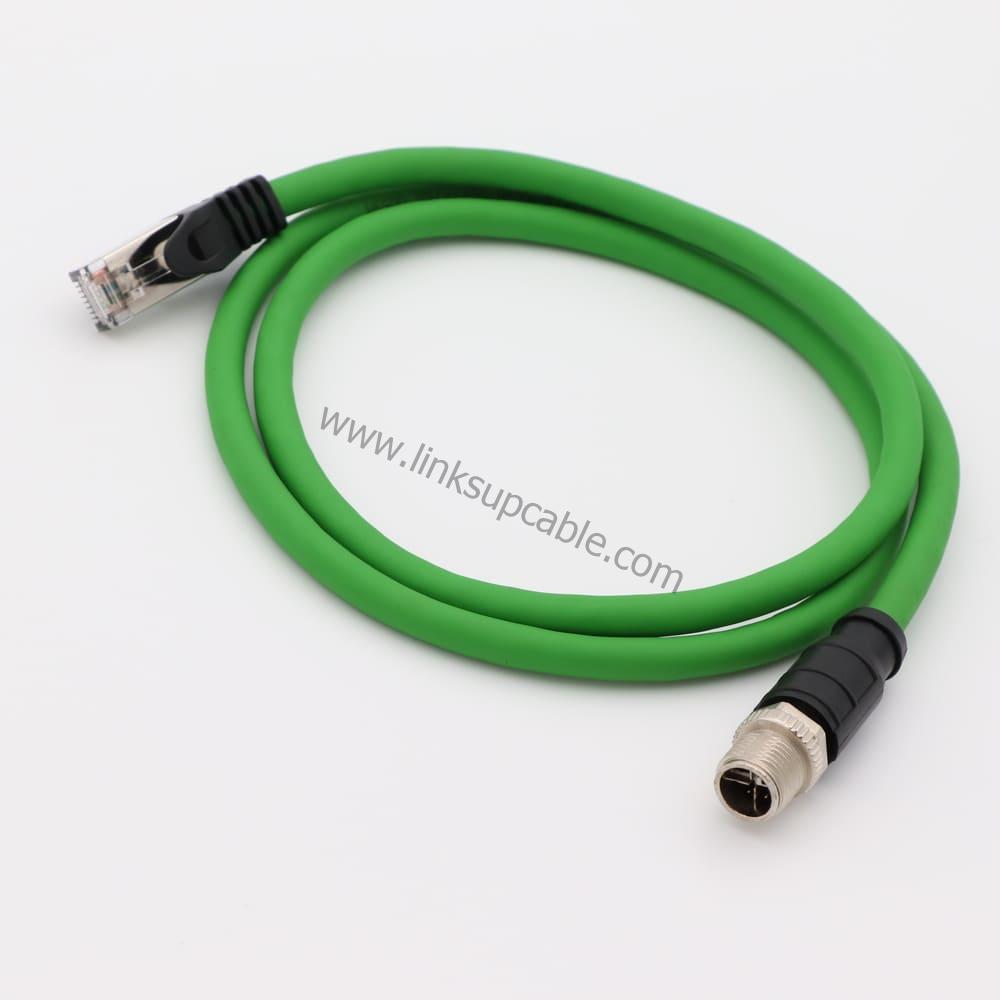

As industrial automation migrates toward Industry 4.0 and smart factory standards, high-bandwidth communication becomes critical. The Cat6A RJ45 to M12 X-Coded 8-Pin Industrial Ethernet Cable Assembly is designed to deliver reliable 10 Gigabit (10Gbps) data transfer over harsh, high-noise manufacturing environments. By connecting a standard shielded RJ45 connector on one end to a heavy-duty M12 X-code 8-pin interface on the other, this cable provides the ultimate high-speed bridge between indoor networking infrastructure and rugged field devices.
Superior X-Coding & Signal Integrity (IEC 61076-2-109)

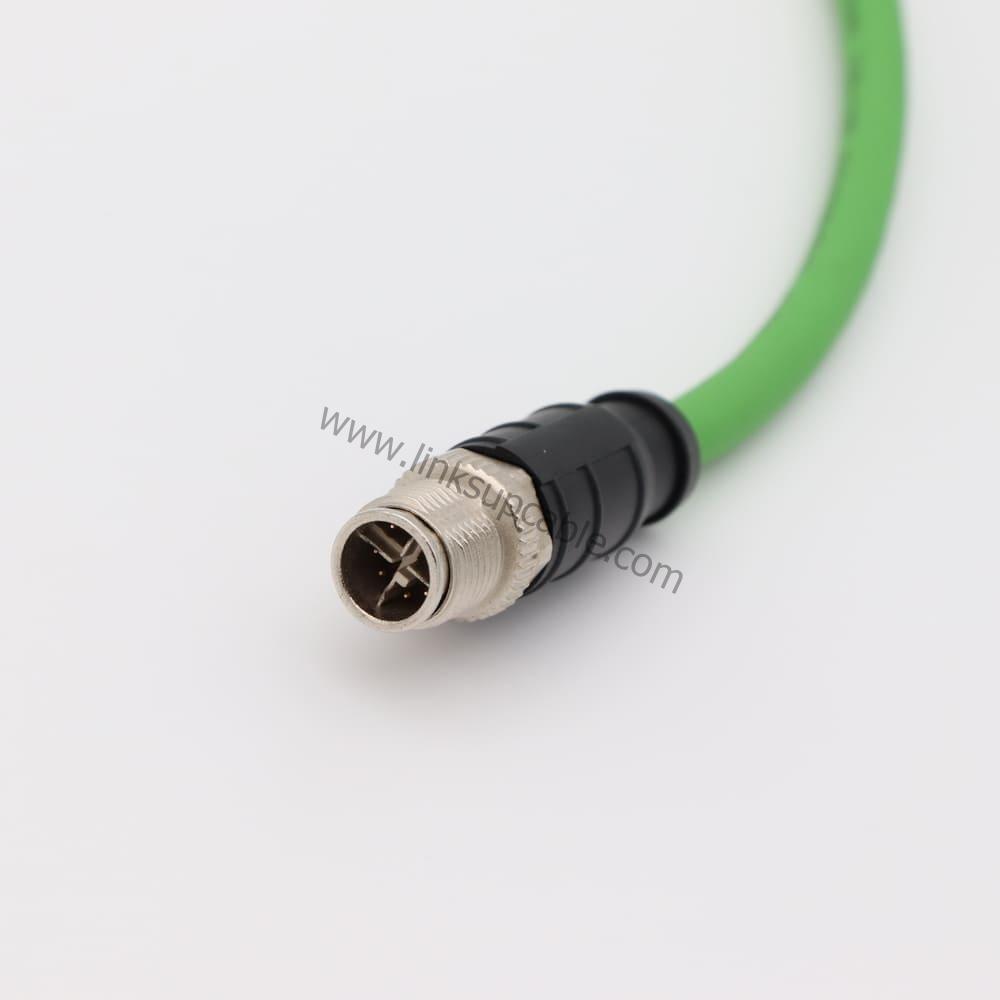

Unlike conventional A-coded or D-coded connectors, the M12 X-Coded interface integrates a star-quad/cross-shaped metal shield that physically isolates each of the four wire pairs. This structural separation virtually eliminates Near-End Crosstalk (NEXT) and Far-End Crosstalk (FEXT), allowing the cable assembly to comfortably pass Cat6A / Class EA channel tests up to 500 MHz. Combined with overall SF/UTP shielding (braid + foil), it guarantees zero packet loss even when installed alongside heavy motors, VFDs, and high-voltage power cables.
Built for Extreme Mechanical & Environmental Stress
- Rugged IP67 Construction: Features an integrated rubber O-ring seal and a nickel-plated solid brass coupling nut to withstand continuous vibration, washdown procedures, and dust accumulation.
- Flexible Drag-Chain Grade Jacket: Available in oil-resistant PUR or flame-retardant PVC jackets, designed to survive millions of flex cycles in robotic arms and drag-chain cable carriers.
- Wide Operating Temperature: Engineered to perform reliably in extreme industrial ambient temperatures ranging from $-40^\circ\text{C}$ to $+85^\circ\text{C}$.
Typical Applications

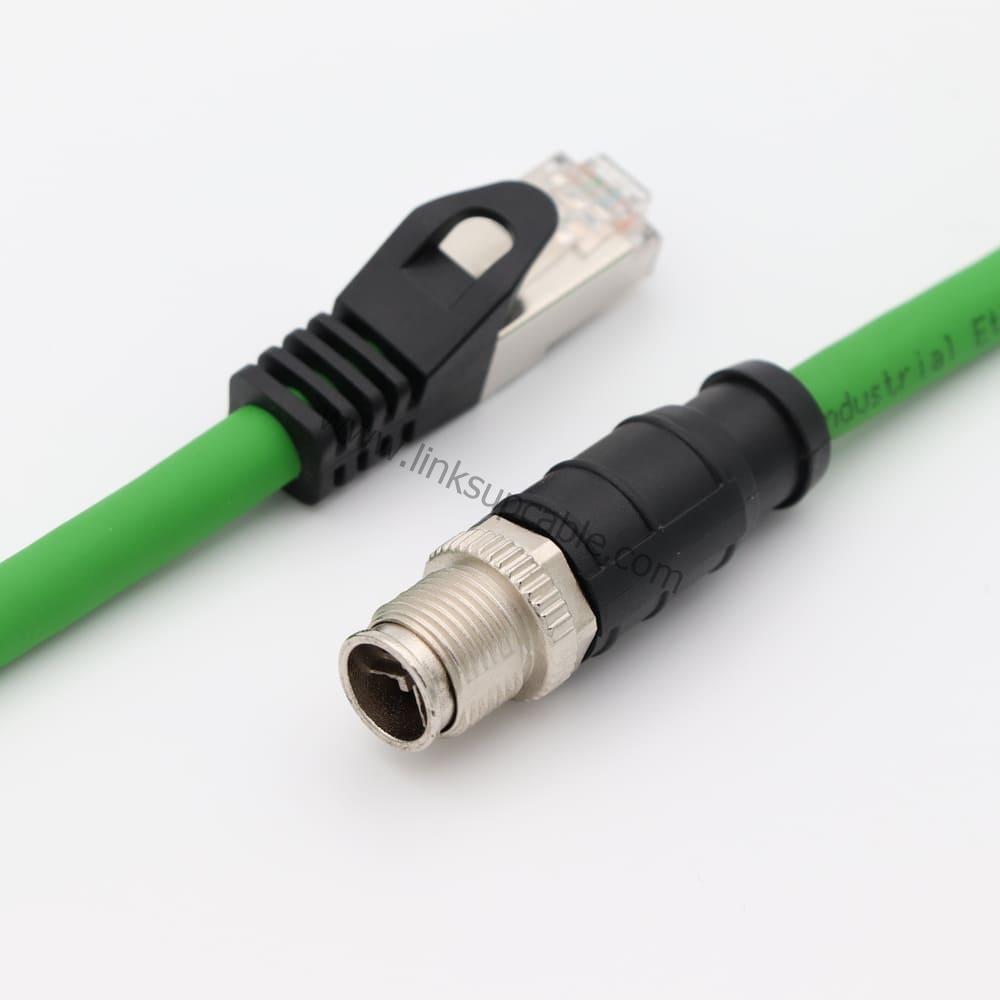

- GigE Vision & Machine Vision Cameras: High-resolution image capture and real-time streaming for inspection systems (Cognex, Basler, Keyence, Teledyne FLIR).
- High-Speed Industrial Switches & PLCs: Connecting control cabinets to remote IP67 fieldbus hubs via EtherCAT, PROFINET Gigabit, or Modbus TCP.
- Robotics & Motion Control: Dynamic cabling solutions for multi-axis industrial robots and automated guided vehicles (AGVs).
- Rail Transit & Intelligent Transportation: Passenger information systems (PIS), CCTV surveillance, and onboard vehicle networks compliant with EN 50155 standards.
Technical Specifications
Temperature Range: Static: $-40^\circ\text{C}$ to $+85^\circ\text{C}$ | Dynamic: $-25^\circ\text{C}$ to $+80^\circ\text{C}$

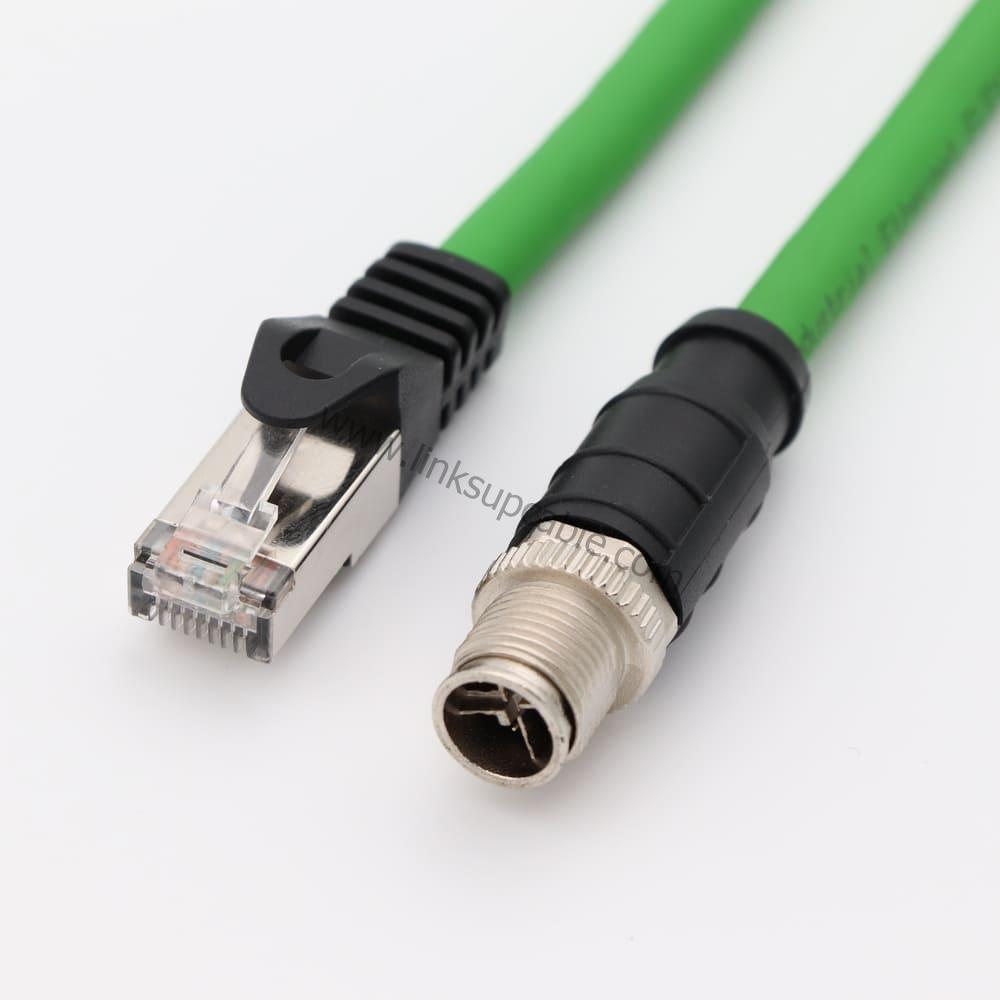

Connector A: Male RJ45 8P8C (Shielded Zinc Alloy / Snagless Design)
Connector B: M12 X-Coded 8-Pin Male or Female (Threaded Locking Coupling)
Standard / Category: Category 6A / Class EA (ANSI/TIA-568.2-D, ISO/IEC 11801)
Bandwidth & Speed: 10 Gbps transmission at 500 MHz
IP Rating: IP20 (RJ45 side), IP67 (M12 X-Code side when mated)
Shielding: SF/UTP (Individual Foil Pairs + Overall Tinned Copper Braid)
Jacket Type: PUR / PVC (Halogen-Free, Oil-Resistant, Flame-Retardant FT2/VW-1)
