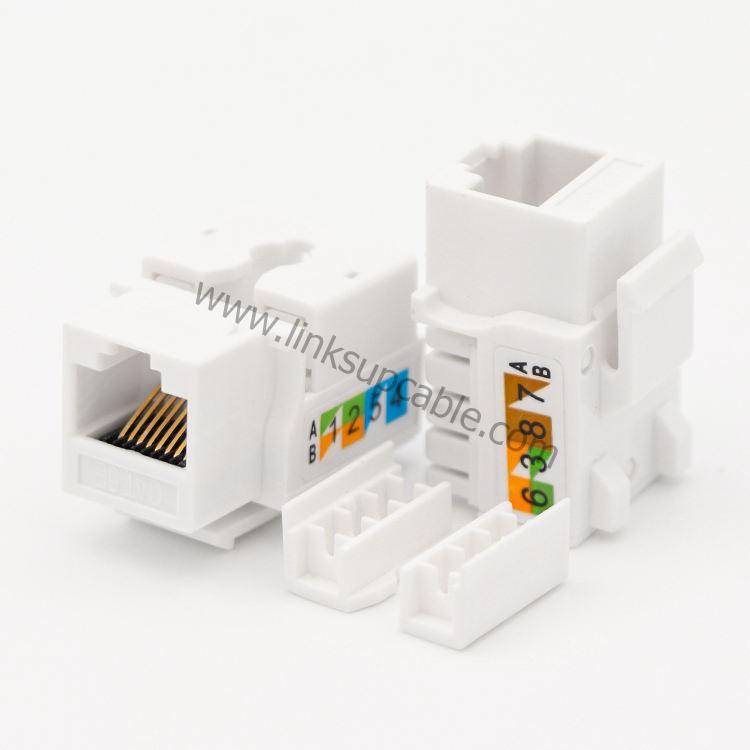

Cat5e UTP STP Metal Keystone Jack and RJ45 8P8C Connector

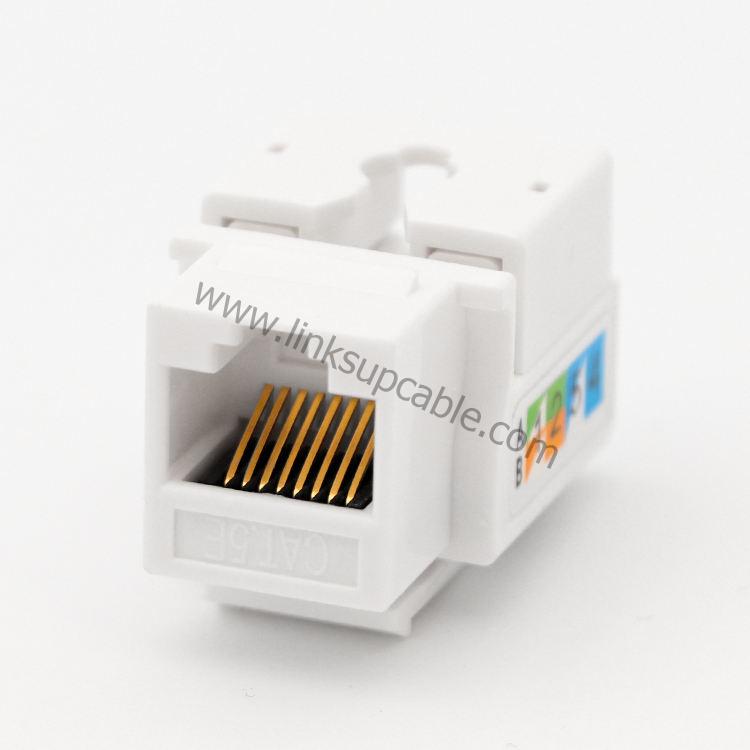

Dual 110 Krone IDC Termination Blocks on Cat5e Keystone Jack

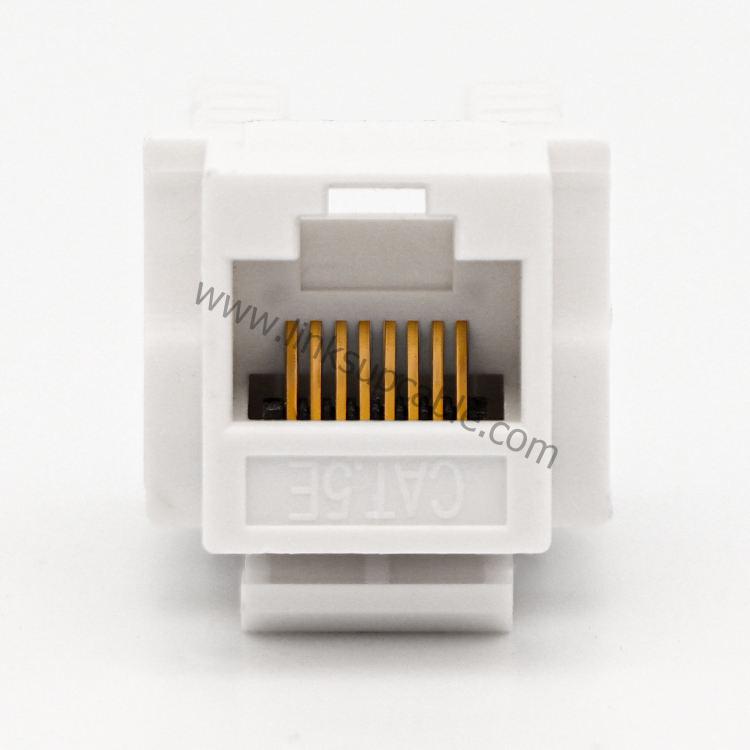

Cat5e Metal Keystone Jack Installed into Network Wall Plate

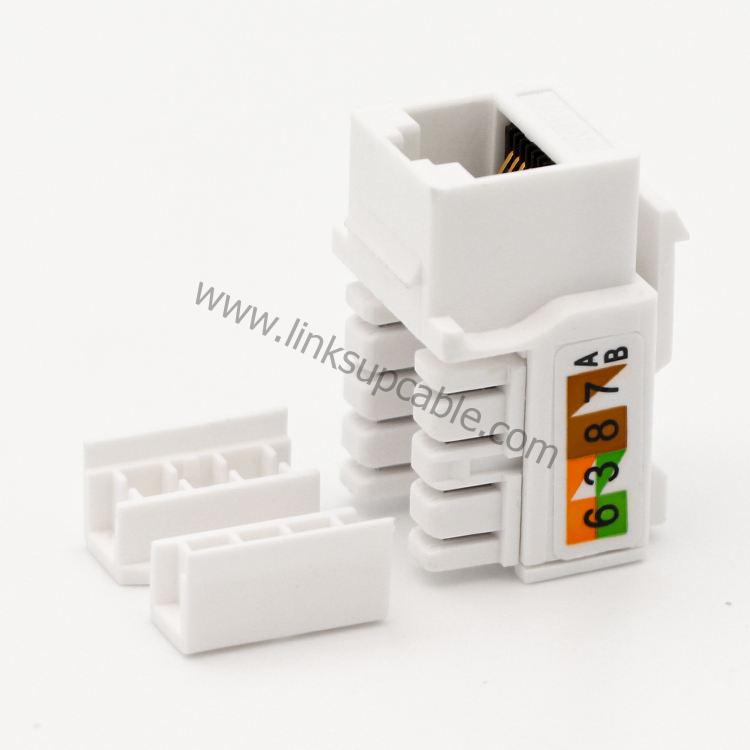

50-Micron Gold-Plated Pins inside Cat5e RJ45 Modular Jack

Cat5e UTP/STP Keystone Jack & RJ45 8P8C Connector Modular Plug Assembly

  • Gigabit Network Standard: Fully compliant with ANSI/TIA-568-C.2 Cat5e performance standards, supporting transmission speeds up to 1000Mbps (1Gbps) at 100MHz bandwidth.

  • Dual-Type IDC Termination: High-density IDC terminals support both 110 and Krone punch-down tools, accommodating 22 to 26 AWG solid and stranded network wires.

  • Rugged Metal Housing & Shielding: Zinc-alloy metal housing options provide 360-degree EMI/RFI shielding and extreme physical durability for high-density patch panels and wall plates.

  • 50-Micron Gold-Plated Contacts: Phosphor bronze contacts with 50u” gold plating ensure low contact resistance, anti-oxidation, and reliable long-term signal connection.

  • Universal Snap-In Compatibility: Standardized keystone jack footprint seamlessly fits into all standard patch panels, surface mount boxes, and faceplates/wall plates.

  • PoE & VoIP Approved: Low DC resistance design supports Power over Ethernet (PoE) for IP cameras, access points, and VoIP phone systems without heat accumulation.

Category:
Inquire Now
×

Request Free Samples

Fill in your details below, and our team will get back to you within 12 hours.

Fast Delivery In-Stock & Ready to Ship
OEM/ODM Service Custom Logo & Package
100% QC Passed Fluke Test Guaranteed

Reliable High-Speed Network Termination: Cat5e Keystone Jack & RJ45 Connector

Build a seamless and professional network infrastructure with the Cat5e Keystone Jack and RJ45 8P8C Connector Series. Designed for high-density structured cabling, enterprise server rooms, and residential wall plate terminations, this modular jack system delivers stable 1Gbps Gigabit Ethernet speeds at 100MHz bandwidth. Whether you are terminating patch panel runs, installing office wall sockets, or making custom Ethernet drop cables, this Cat5e keystone module provides effortless installation and robust connectivity.

Engineered for Easy Installation & Durability

Termination speed and connection accuracy are critical for structured cabling installers. This Cat5e modular jack is built with installer-friendly features:

  • Dual-Color Coded Wiring Labels: Clearly marked with T568A and T568B color diagrams directly on the IDC cap for error-free wire arrangement.
  • Toolless & Punch-Down Flexibility: Supports standard 110 or Krone impact tools with optional tool-free strain relief caps for fast field assembly.
  • Heavy-Duty Zinc-Alloy Shell: Heavy-duty metallic/shielded construction blocks external electromagnetic noise (EMI/RFI) and resists mechanical stress during maintenance.
  • Gold-Plated Contact Pins: 50-micron gold-plated phosphor bronze RJ45 contacts ensure continuous electrical conductivity over thousands of insertion cycles.

Universal Hardware Compatibility

Designed to comply with standard industry dimensions, these Cat5e keystone jacks fit effortlessly into standard network hardware:

  • Patch Panels & Wall Plates: Snaps securely into standard 12/24/48-port keystone patch panels, single/multi-gang wall faceplates, and surface-mount boxes.
  • Power over Ethernet (PoE) Support: Engineered to handle IEEE 802.3af/at PoE/PoE+ power loads, making it ideal for powering IP surveillance cameras, wireless APs, and smart office systems.

Technical Specifications

Standards Compliance: ANSI/TIA-568-C.2, ISO/IEC 11801, RoHS, CE, UL Listed

Module Type: Category 5e (Cat5e) Keystone Jack / RJ45 8P8C Plug

Shielding Type: UTP / STP Metal Shielded Options Available

Bandwidth Frequency: 100 MHz

Max Data Rate: 1 Gbps (1000BASE-T)

Wire Gauge Range: 22 to 26 AWG Solid / Stranded Wire

IDC Terminal Blocks: Dual 110 / Krone Type IDC

Contact Plating: 50-Micron Gold Plating over Nickel
